What goes wrong inside Toyota automatic transmissions and how JDM units hold up

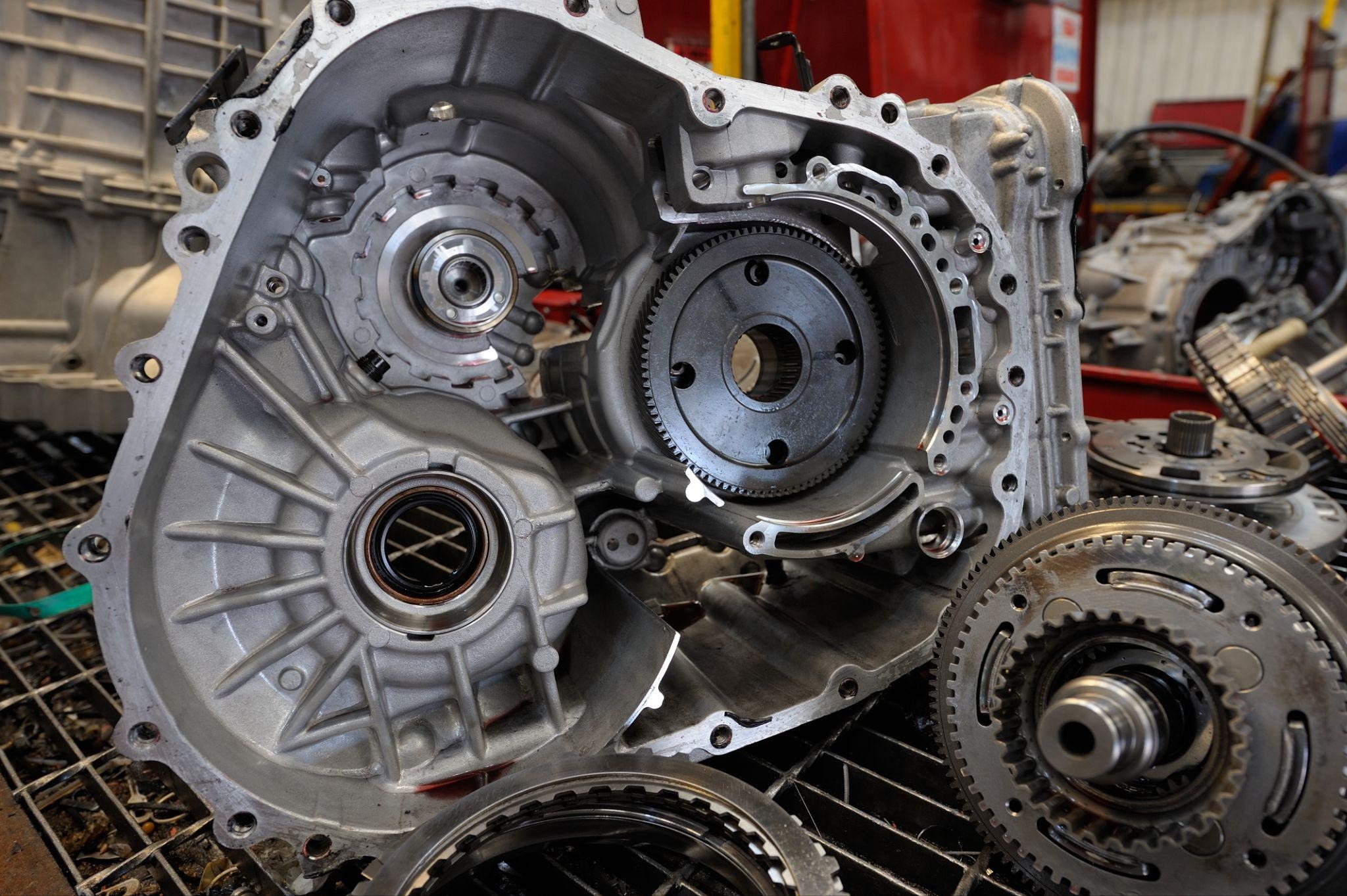

I’ve pulled apart enough Toyota transmissions to know that their reputation for reliability is earned, not inflated. The A-series and U-series automatic gearboxes that Toyota used across everything from Corollas to 4Runners are genuinely well-engineered. But they’re not indestructible, and the failure modes follow patterns that anyone working on these cars regularly should understand.

Knowing where these transmissions fail tells you two things: when a rebuild makes sense and when sourcing a low-mileage JDM Toyota transmissions replacement is the smarter path.

The U151E and U250E: workhorses with a weak spot

The U151E served the Highlander, RX330, and Sienna through the mid-2000s, while the U250E went into the Camry and Solara. Both are Aisin-Warner designs, solid platforms that handle moderate torque loads without complaint for 150,000 miles or more. The problem shows up in the torque converter lockup clutch.

When the lockup clutch material wears, it sheds friction material into the transmission fluid. That contaminated fluid circulates through the valve body, embedding particles in the solenoid screens and scoring the bore surfaces. The symptoms start subtle: a slight shudder between 35 and 50 mph during light acceleration. Over months, the shudder becomes a hard engagement, then a slip, then a failure to lock up entirely. By the time most owners notice, the valve body is compromised and the fluid is dark brown.

A rebuild at this stage means a new torque converter, a valve body remanufacture or replacement, a full fluid flush, and labor. Independent transmission shops like AAMCO or Cottman quote $2,800 to $4,500 for the job. A JDM replacement unit with under 50,000 miles on it costs roughly $800 to $1,400 and can be swapped in a day by a shop familiar with the platform.

The A340 series: bulletproof until it isn’t

Toyota’s A340F and A340E transmissions powered the Tacoma, 4Runner, and Land Cruiser through multiple generations. These are hydraulically controlled units with no electronic solenoid pack in the earlier versions, which makes them simpler and more durable in off-road and towing applications. The 4Runner community treats them as essentially unbreakable.

They’re not. The A340F develops governor pressure issues above 120,000 miles. The output shaft bushing wears, creating play that affects shift timing. And the front planetary gear set, while overbuilt for stock applications, accumulates wear faster in vehicles that tow frequently or run oversized tires with regeared axles.

The advantage for JDM sourcing here is that Japanese-market trucks and SUVs see different duty cycles than their American counterparts. A Hilux Surf running on paved Japanese roads at conservative speeds puts far less stress on the transmission than a 4Runner towing a boat trailer across West Texas in August. Same gearbox. Drastically different wear profiles.

CVT failures and the Corolla question

Toyota’s shift toward CVTs (Continuously Variable Transmissions) in the Corolla, RAV4, and C-HR introduced a different set of durability concerns. The K-series CVTs are belt-driven units manufactured by Aisin, and they’re more reliable than the Jatco CVTs that Nissan uses. But they’re still CVTs, and the belt-and-pulley interface wears in ways that conventional planetary gears don’t.

Heat is the primary enemy. CVT fluid degrades faster than conventional ATF, and Toyota’s recommended service interval of 60,000 miles is optimistic for vehicles that see heavy traffic, frequent stops, or hot climates. Fluid that isn’t changed on schedule allows the steel belt to score the pulley surfaces, and once that scoring starts, it accelerates. The transmission starts slipping under load, then produces a whining noise, then fails.

Rebuilding a CVT is specialized work. The belt-and-pulley assembly requires precise measurement and matching, and most general transmission shops don’t have the tooling. A JDM replacement CVT from a low-mileage Corolla that was maintained on Japan’s shorter service intervals often has 30,000 to 50,000 miles of clean life left in it, and the swap avoids the rebuild complexity entirely.

Compare that to the Nissan Altima’s Jatco CVT7, which earned a notorious reputation for premature failure. Nissan extended warranties and faced class-action suits over the issue. Toyota’s Aisin CVTs haven’t generated the same volume of complaints, but the maintenance neglect problem is universal across all CVT platforms. The fluid does more work in a CVT than in a traditional automatic, and owners who skip the service are shortening the transmission’s life by years.

The installation side: what shops need to know

Swapping a JDM transmission into a USDM Toyota is straightforward on most platforms, but the details matter. The bell housing bolt pattern matches across JDM and USDM versions for the same engine family, so a U250E from a Japanese Camry bolts directly to a USDM 2AZ-FE without adapter plates. Speed sensors, however, sometimes differ. The JDM unit may use a different connector or a different signal type, and the vehicle speed sensor output needs to match the USDM instrument cluster calibration.

Shift solenoid connectors are usually identical within the same transmission generation, but it pays to verify before the unit goes in. Having the shop compare the connector pinout against the old transmission before unbolting anything saves frustration during reassembly. A fifteen-minute check prevents a two-hour troubleshooting session after the swap is complete.

Why mileage matters more for transmissions than engines

Engines can tolerate abuse and still pass a compression test. Transmissions accumulate wear in ways that are harder to measure from the outside. Fluid color, shift quality during a test drive, and the absence of codes on an OBD scan are useful indicators, but they don’t reveal internal wear on clutch packs, band surfaces, or planetary gear teeth.

That’s why verified low mileage matters more when sourcing a transmission than when sourcing an engine. A JDM transmission with 40,000 miles from a vehicle that was serviced at the Toyota dealer in Osaka has a measurably different wear state than a 140,000-mile pull from a Camry in Phoenix. Both might shift fine on a cold test. One will last another 80,000 miles. The other might last 20,000.

Fluid condition at the time of removal is a data point that serious importers track. Clean pink fluid in a JDM unit means the original owner followed the maintenance schedule. Dark or burnt-smelling fluid gets the unit flagged or rejected. That screening process, tedious as it is, separates the suppliers who move volume from the ones who move quality.

Toyota built transmissions that can go the distance. But when they don’t, and eventually some of them won’t, the replacement decision should be driven by data, not sentiment. Know the failure modes. Understand the costs. And source the replacement from someone who verified the unit before putting it on a shelf.
